XINYUAN Truck and Construction Vehicle Spray Booth 7 m

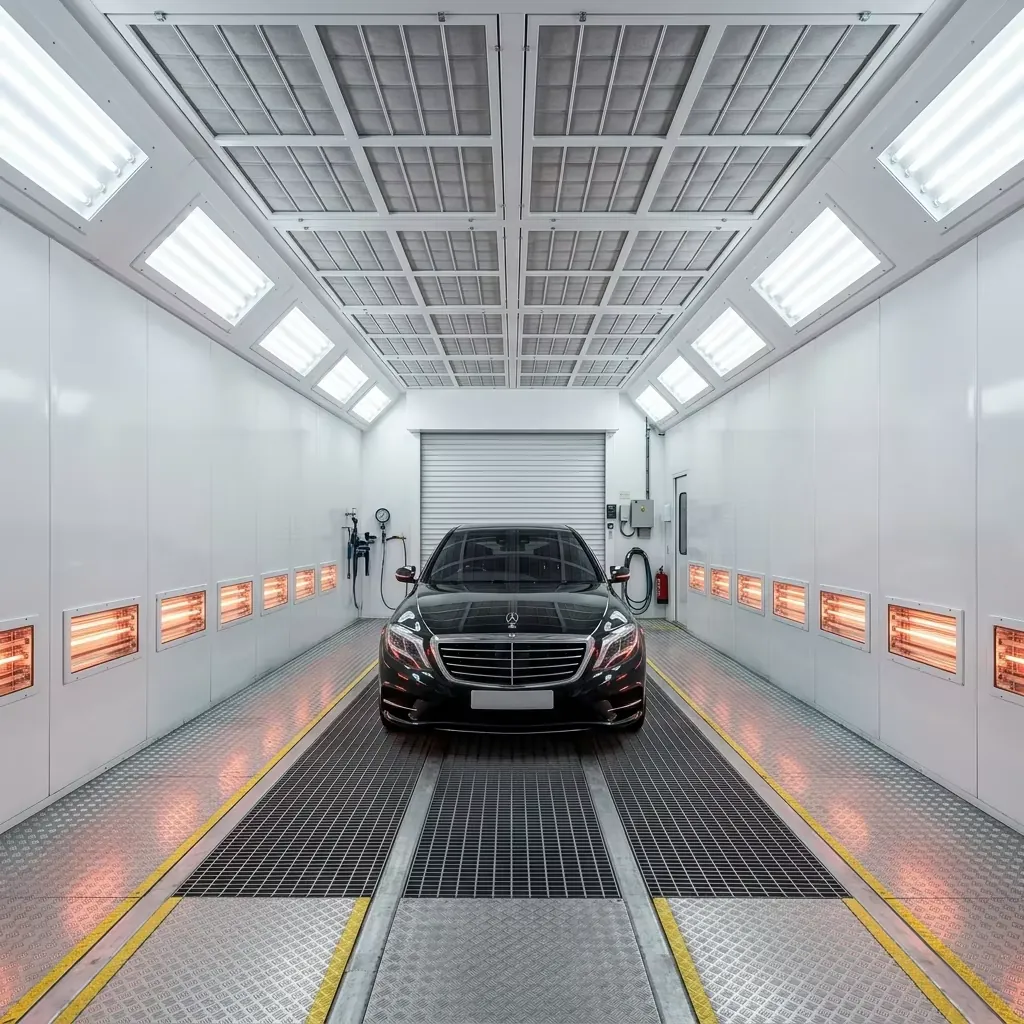

A spray booth is a airflow machine before it is a cabin. Air enters through the ceiling filter, moves down past the vehicle and leaves through the floor grating, so overspray is pushed away from the panel being painted rather than across it. Every booth on this page follows that downdraft path, which is why the ceiling filter and the floor filter are the two consumables that decide whether the finish stays clean.

Drive is a 18KW unit on 220V/380V; confirm the site supply and phase before the order, because it fixes the motor and the control box. External dimensions are 7000 x 5350 x 3400mm / 7000 x 5200 x 3400mm, which is the figure to check against the room, the door and the duct route. Heating is Electric Heating, with a 80°c bake cycle; filtration is Water Filter / Ceiling Filter / environmental 3 filter process.

The heating choice drives the running cost more than the purchase price. Diesel burner units heat fast and suit sites without a heavy electrical supply; electric units remove the fuel handling and the flue, but demand 18–54 kW of connected load. Dual-fuel builds let a shop switch according to the season or the local fuel price. Baking temperature is 80 °C across the range, which is the normal two-pack cycle.

Working length is 7.0 m on every model here, with external widths of 4.0 m or 5.35 m depending on the configuration. The narrower cabin suits a single bay with a tight footprint; the wider one leaves room to open doors inside the booth. Filter stages run from a single ceiling filter to a three-stage set with pre-filter cotton and floor filtration.

One unit is the minimum order. The published band runs from USD 4,390 to USD 4,680 per unit depending on quantity; prices are USD, ex works, and exclude freight and destination duties. Payment is 30% by T/T to start production and 70% before shipment, and standard configurations typically leave the factory within seven working days of the deposit. The machine ships in export packing suitable for sea freight; packing dimensions and gross weight come with the quotation so your forwarder can price the container. Warranty is 12 months against manufacturing defects.

A booth needs a level floor, a duct run to atmosphere and a power supply matched to the heater. Confirm the flue route and the neighbour clearance before the panels arrive — this is the part of a booth project that cannot be fixed after installation.

Before you order

Before the order is confirmed, four site conditions decide whether the machine fits: the supply voltage and phase at the wall, the floor or slab that carries the load, the access width and turning space for the truck and the unloading equipment, and the clear height above the machine at full rise. Send those four with the enquiry and the quotation comes back with the right build the first time. If one of them is unknown, say so — we would rather ask twice than ship a machine that has to be modified on site.
